Pressure Tank Service & Replacement — Jones County, GA

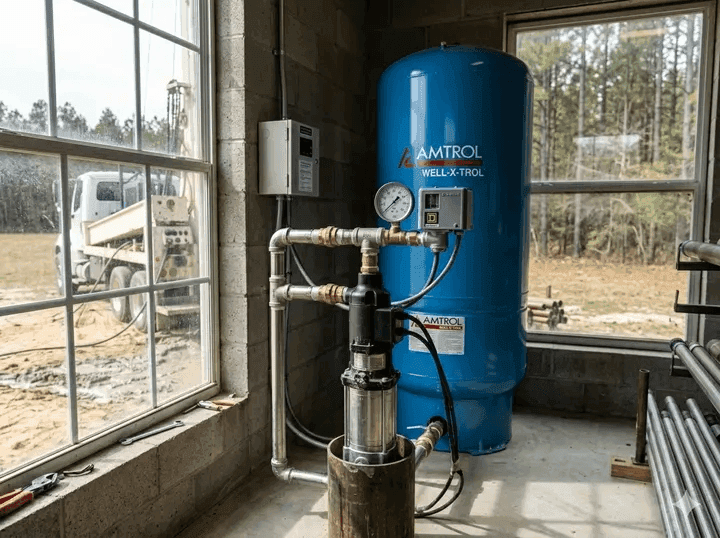

When your well pump kicks on every few seconds or your water pressure swings wildly, a waterlogged pressure tank is usually to blame. Gray Well Drilling provides pressure tank service throughout Jones County — diagnosing well water pressure problems, handling pressure tank replacement, and protecting your submersible pump from the damage caused by constant short cycling.
Signs Your Pressure Tank Needs Service
These are the four most reliable indicators of well water pressure problems caused by a failing pressure tank. If you recognize any of them, the pump is likely being harmed every day the problem goes unaddressed.
If you hear the pressure switch clicking and the pump starting every 2–5 seconds while water is running — or even while nothing is running — the pressure tank has lost its air charge. Normal pump cycles are 1–3 minutes apart at minimum during normal household use.
Watch the gauge at your pressure tank or pressure switch. On a healthy system, the needle holds relatively steady between 30 and 50 PSI during use. On a waterlogged tank, it bounces from low to high repeatedly as the pump cycles — sometimes completing a full swing within seconds.
A functioning pressure tank stores several gallons of pressurized water so you have flow even when the pump is off. If pressure drops to almost nothing the moment the pump stops, the tank holds no water reserve — a classic sign of a failed bladder.
Tap the side of your pressure tank with your knuckle. A healthy bladder tank has a hollow or resonant sound in the upper portion where the air chamber is. If the tank sounds completely solid from top to bottom, water has displaced all the air — a sure sign of a waterlogged tank.
Our Pressure Tank Services
We handle the full range of pressure tank service needs for residential well owners throughout Gray and Jones County — from a simple pre-charge adjustment to complete pressure tank replacement and system rebuild.
Bladder & Diaphragm Tank Replacement
We remove the failed tank and install a properly sized bladder-style replacement — pressure tank sizing is based on your pump's flow rate. We set the pre-charge to match your system and test through multiple pump cycles before we leave.
Pre-charge Pressure Adjustment
If your tank bladder is still intact but system pressure is off, we check and adjust the air pre-charge using a calibrated gauge. This often resolves mild short cycling without a full replacement.
Pressure Switch Replacement
We replace failed or corroded pressure switches with the correct 30/50 PSI units standard in Jones County residential well systems. We verify switch settings match the tank pre-charge before closing out the job.
System Pressure Testing
We test static and dynamic pressure at multiple points in the system, count pump cycles per minute, and measure drawdown to fully understand the system's health — not just the obvious failed component.
Pipe & Fitting Inspection
While servicing the pressure tank, we inspect the connection points, check valves, and nearby piping for corrosion, mineral buildup, or fittings that are failing — catching problems before they become emergencies.
Emergency Pressure Service
Loss of water pressure is a household emergency. Emergency pressure tank service is available throughout Jones County — Gray, Haddock, Round Oak, Cleveland, and Devereux. Submit a request and we respond fast.
Why Pressure Tank Problems Burn Out Pumps
A failed pressure tank isn't just a well water pressure problem — it's actively destroying your submersible pump every hour it runs.
Every time a submersible pump starts, it draws 5–7 times its running current for a fraction of a second — a startup surge that generates significant heat in the motor windings. On a healthy system, those starts are spread across the day in normal run cycles. On a waterlogged system, that surge repeats hundreds or thousands of times daily. The motor insulation degrades, bearings wear prematurely, and the pump fails years ahead of schedule. Servicing the pressure tank is the single most effective way to protect a working well pump — and if your well pump and pressure tank have both been damaged by sustained short cycling, we'll catch that during system testing too.
Pressure Tank Questions
Common questions from Gray and Jones County homeowners about pressure tank service, sizing, and replacement.
The clearest sign of a waterlogged pressure tank is the well pump cycling on and off every few seconds — sometimes called short cycling. You may also notice the pressure gauge needle swinging up and down rapidly when water is running, water pressure dropping to nearly nothing between pump starts, or the tank feeling completely solid when you tap it (there should be an air-filled section at the top). If the pump runs for just a second or two and then shuts off, only to start again moments later, the bladder inside the tank has failed and the tank needs to be serviced or replaced.
The right pressure tank size depends on your pump's flow rate (gallons per minute), your household water demand, and the pressure switch settings on your system. Most residential well systems in Jones County run a 30/50 PSI pressure switch, and a properly sized tank for a typical home with a 1/2 to 1 HP submersible pump ranges from 20 to 44 gallons of total tank capacity. Undersized tanks cause short cycling; oversized tanks are rarely a problem but add unnecessary cost. We assess your existing pump and switch settings during service to recommend the correct replacement size.
Technically, yes — a pressure switch adjustment involves turning a nut inside the switch housing to raise or lower the cut-in and cut-out pressures. However, pressure switch work involves live electrical components and requires understanding the relationship between switch pressure settings and tank pre-charge pressure. Incorrect adjustment can damage the pump motor or cause the system to run continuously. If you are not comfortable with electrical systems, have a professional handle it. We also verify the pre-charge pressure in the tank matches the cut-in pressure setting, which is a step many DIY adjustments miss.
In Jones County, Georgia, a pressure tank replacement typically costs $300 to $800 installed, depending on the tank size, brand, and whether any additional components such as the pressure switch or connecting fittings need replacement at the same time. Most standard residential bladder tanks in the 20 to 44-gallon range fall in the middle of that range. The service call for diagnosis and system inspection is typically separate. If the tank has been waterlogged and causing rapid pump cycling, we also inspect the pump motor for signs of wear that may require additional attention.
A straightforward pressure tank replacement in Jones County typically takes two to three hours. That includes shutting down the pump, relieving system pressure, removing the old tank, installing the new bladder tank, setting the correct pre-charge pressure with an air compressor, and testing the system through several pump cycles to confirm normal operation. If the pressure switch also needs replacement or the piping connections need reconfiguring, add another hour.
Request a Free Pressure Tank Quote
Tell us about your well water pressure problems and we'll get back to you promptly with an honest pressure tank service assessment and quote — no obligation.
